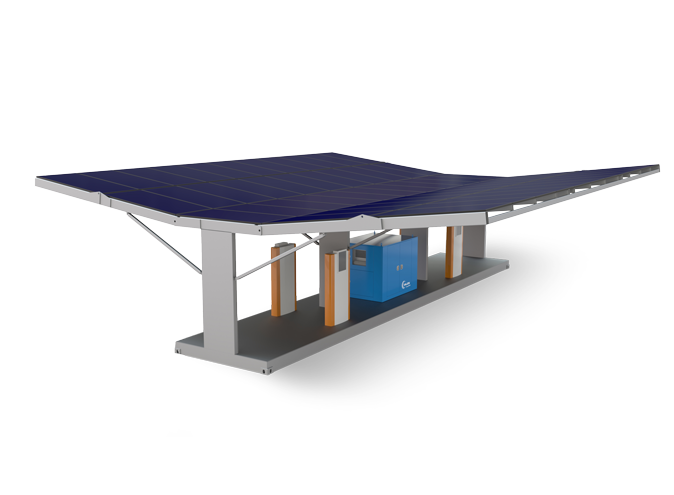

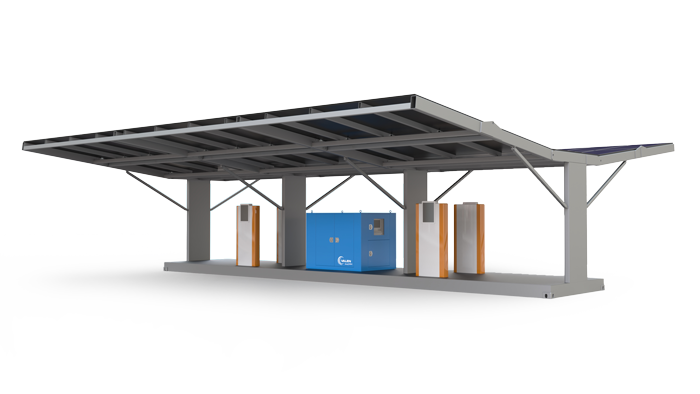

Portable Power Plant
Your trusted partner for a comprehensive turnkey solution in the supply and installation of Potable Power Plants, meticulously tailored to meet Australian standards at their zenith. With a relentless commitment to excellence and sustainability, Valen stands at the forefront of innovation in the renewable energy sector, revolutionizing the way communities harness and store power. Innovative technology to support a growing network.
- Modular Design
- Built-In redundancy
- Premium Energy Management System
Modular Design
Built-In redundancy
Premium Energy Management System
Valen’s energy management system allows seamless control and monitoring of all components, reducing operational complexity and ensuring future-proof integration.
Valen’s unified energy management system excels in cyber security, seamlessly integrating with your secure network with no link to the outside world. it monitors, controls and alarms on all on-site components – including HVAC, UPS, temp, humidity, access, energy system and generator etc – while linking across all energy storage systems. With servier redundancy for maximum reliability and built-in tools for scheduling maintenance and servicing, it streamlines operations, delivers realtime performance insights, and helps prevent issues before they arise.
Power your potential with Valen Utilities
Specifications
| Item | 90kW/189kWh/45kWP | |
|---|---|---|
| Battery Data | Cell spec | LFP 32VDC 4.74 kWH |
| String configuration | 2P 19S | |
| Number of strings | 2 | |
| DC rated energy | 180kWh | |
| DC Usable Energy | 171kWh | |
| Rated voltage | 608V | |
| Voltage range | 570-684V | |
| Efficiency Rate | 98.50% | |
| Solar Data | Max PV Power Output | 30kWP |
| Inverter Capacity | 45kW | |
| MPPT Strings | 3 | |
| Voltage Range | 250-830V | |
| AC Data | Rated grid voltage | 400Vac |
| Max Apparent Power | 99kVA | |
| Grid voltage range | 312-459Vac | |
| Rated Output Power | 90kW | |
| Power Factor | 0.1 to 1 leading or lagging (Controllable) | |
| Peak Efficiency | 0.973 | |
| General Data | Dimension (LWH) | 12.19m x 2.44m x 2.65m |
| Enclosure Rating | IP55 | |
| Operating Temperature Range | -30 to +60 Celsius /n (derating of Inverter at 45 degrees) | |
| Relative humidity | 0~95% (non-condensing) | |
| Max working altitude | 3,000m | |
| Monitoring Protocol | Modbus RTU, Modbus TCP/IP, /n OCPP, DNP3, SNMP | |
| Cooling | Dual Air Conditioning |
Premium Energy Management System
Empowering electricity networks through advanced energy management, Valen’s EMS is designed to optimise asset control, streamline network operations, and reduce environmental impact. By centralising comprehensive monitoring and providing seamless control across critical power assets, we enable network operators to minimise field visits, cut operational costs, and focus their teams on high-value tasks.
Control every site, every component from any location - effortlessly.
Valen provides an agnostic, all-encompassing remote monitoring and management platform to track, analyse and optimise your telecommunications sites’ performance. Single dashboard for all data points including batteries, temperature, door alarms etc. If you think it, we can monitor it from this dashboard.
Seamless integration
The main job of the Energy Management System is to make sure everything is working together and synchronised. Valen’s monitoring solution can take a variety of protocols and feed out a selected protocol. For example, it can feed in MODBUS RTU or MODBUS TCP and feed out DNP3. These decisions are discussed and defined during Valen’s design stage.
Supports FCAS
The Energy Management System (EMS) supports Frequency Control Ancillary Services (FCAS) by actively monitoring and managing the battery energy storage system. It can quickly respond to changes in grid frequency by charging or discharging the batteries to help maintain stability. This dynamic response helps the grid stay balanced and supports overall grid reliability.
Dynamic and adaptable
Valen’s Energy Management System (EMS) for its Battery Energy Storage System is very flexible and can easily adapt to changes. You can add new drivers or protocols if needed, and they can be quickly uploaded to the EMS, making it ready to go. The system has 34 input and output points, both digital and analogue, which allows it to handle a variety of tasks. Plus, it uses very little power, making it efficient to run.
Cyber-security
Cyber security is and should be at the forefront of community battery deployment. Valen’s Energy Management System (EMS) comes with agnostic integration to all components through a control and monitoring network. This enables a single login and control from one platform and can be tailored to requirements.
Discover
We work to understand your needs, challenges and opportunities.
Design
We work to understand your needs, challenges and opportunities.
Deliver
We strive for excellence in procurement, dispatch and delivery.
Support
We support you for the life of your system.
