ModX

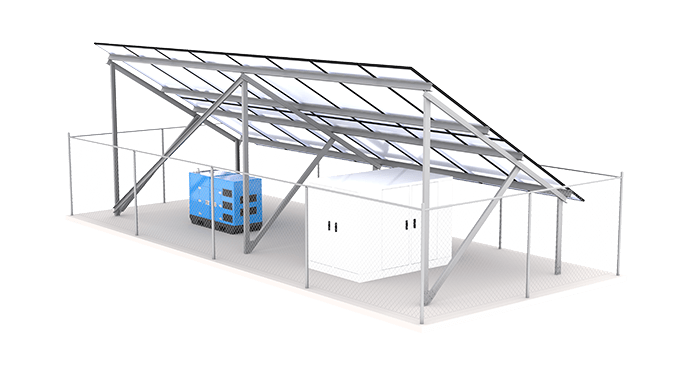

Valen ModX Pre Engineered Modular Solar System is the brainchild of accumulated years of experience supporting clients with their remote off grid power requirements. As the world continues to evolve into the AI space, power in remote locations is becoming increasingly essential.
The Valen ModX stand alone solar system is designed utilising a tried and tested range of Valen core products, allowing the ModX to perform in perfect synchronisation. Valen EnduroGel battery system, Valen Industrial Field Cabinets, Valen Solar Panels and Solar Controllers all come standard, with optional extra’s able to be added to retrofit to your project requirements.
- Pre-engineered
- Modular
- Premium Energy Management System
Pre-engineered
Australian made and engineered stand alone solar means product support and spares readily available.
Modular
Modular systems meaning they can be expanded as the need arises.
Valen’s modular solar packages are designed for complete flexibility, allowing seamless expansion as site requirements evolve. Each package can be tailored to grow with your needs, supported by Valen’s stock of all essential components for rapid, reliable maintenance. Our modular design ensures that additional capacity can be added without overhauling the entire system. Optional extras include generators, precast concrete slabs, and upgrades for cyclonic or harsh environmental ratings, making these packages adaptable for even the most demanding conditions. Valen’s modular solar solutions provide a resilient, future-proof investment for sustainable energy needs.
Premium Energy Management System
Valen’s energy management system allows seamless control and monitoring of all components, reducing operational complexity and ensuring future-proof integration.
Valen’s unified energy management system excels in cyber security, seamlessly integrating with your secure network with no link to the outside world. it monitors, controls and alarms on all on-site components – including HVAC, UPS, temp, humidity, access, energy system and generator etc – while linking across all energy storage systems. With servier redundancy for maximum reliability and built-in tools for scheduling maintenance and servicing, it streamlines operations, delivers realtime performance insights, and helps prevent issues before they arise.
Other Features
- Australian made and engineered stand alone solar means product support and spares readily available.
- All components under 1 tonne for easy transportation.
- Quick installation as no ground penetration is required.
- Portable system structure available as an option for sites with changing requirements.
- Modular systems meaning they can be expanded as the need arises.
- Solar panels are able to be installed at ground level minimising the need for WHS equipment.
- Remote monitoring for easy tracking of multiple remote sites.
Optional Extras
- Customise your system to your site. Valen ModX optional extras allow you to ensure your system is ready to go for challenging site locations.
- AC and DC Diesel Generator with Bunded fuel tank (Remote/ AutoStart, Tank Levels & Temperature Sensors
- 48V Wind Turbine – 220W>
- Larger Industrial Field Enclosure to house additional Equipment
- Upgrade to Cyclonic Wind Rating
- Precast Concrete Pads
- Coastal/ Corrosive Environment upgrade
Power your potential with Valen Utilities
Specifications
| ModX2 | ModX3 | ModX4 | ModX6 | ModX12 | |
|---|---|---|---|---|---|
| Key Features | Pre-engineered | Pre-engineered | Pre-engineered | Pre-engineered | Pre-engineered |
| Solar Capacity | .8kWp+ | 1.2kWp+ | 1.6kWp+ | 2.4kWp+ | 4.8kWp+ |
| Solar Charge Controller | 1.16kW | 2kW | 2kW | 2.6kW | 4.9kW |
| Panel Angle | 15-60 | 15-60 | 15-45 | 15-45 | 15-45 |
| Batteries | 5.3kWh | 10.6kWh | 10.6kWh | 15.9kWh | 31.8kWh |
| Power Outputs Available | DC- 12V, 24V, 48V (AC option) | DC- 12V, 24V, 48V (AC option) | DC- 12V, 24V, 48V (AC option) | DC- 12V, 24V, 48V (AC option) | DC- 12V, 24V, 48V (AC option) |
| Skid Dimensions | 2.16m(L) x 1.17m(W) x 2.54 - 3.45m(H) | 3.16m(L) x 1.17m(W) x 2.54 - 3.45m(H) | 4m(L) x 1.6m(W) x 2.54 - 3.45m(H) | 6.06m(L) x 2.44m(W) x 2.54 - 3.45m(H) | 6.71m(L) x 4.00m(W) x 3.67 – 4.56m(H) |
| Designated Available Equipment space | 10RU+ | 10RU+ | 10RU+ | 10RU+ | 10RU+ |
| Wind Rating |
Wind Region: C
Terrain Catagory: 2
|
Wind Region: C
Terrain Catagory: 2
|
Wind Region: C
Terrain Catagory: 2
|
Wind Region: C
Terrain Catagory: 2
|
Wind Region: C
Terrain Catagory: 2
|
Optional Extras
AC Power
Single, split, and 3 phase
Generation:
DC & AC Diesel Generators Wind Turbines Methanol/ Hydrogen Generators Air Management: DC Airconditioning DC Fans Digital Inputs Tank Levels Temperature Sensors Smoke and door alarms
Premium Energy Management System
Empowering electricity networks through advanced energy management, Valen’s EMS is designed to optimise asset control, streamline network operations, and reduce environmental impact. By centralising comprehensive monitoring and providing seamless control across critical power assets, we enable network operators to minimise field visits, cut operational costs, and focus their teams on high-value tasks.

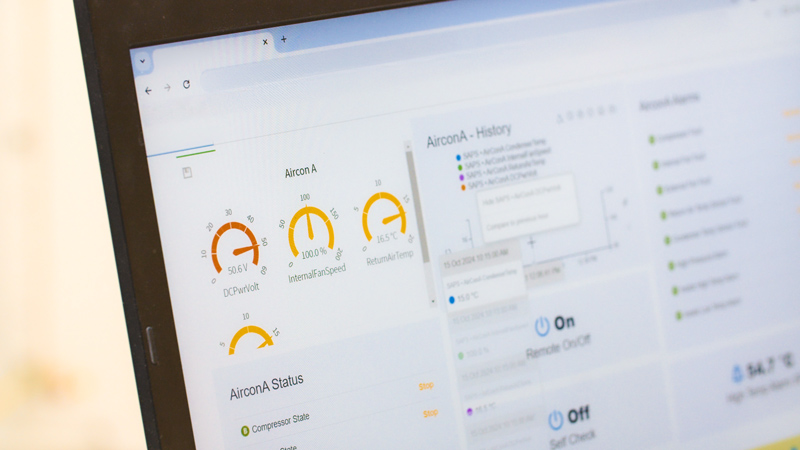

Control every site, every component from any location - effortlessly.
Valen provides an agnostic, all-encompassing remote monitoring and management platform to track, analyse and optimise your telecommunications sites’ performance. Single dashboard for all data points including batteries, temperature, door alarms etc. If you think it, we can monitor it from this dashboard.
Seamless integration
The main job of the Energy Management System is to make sure everything is working together and synchronised. Valen’s monitoring solution can take a variety of protocols and feed out a selected protocol. For example, it can feed in MODBUS RTU or MODBUS TCP and feed out DNP3. These decisions are discussed and defined during Valen’s design stage.
Supports FCAS
The Energy Management System (EMS) supports Frequency Control Ancillary Services (FCAS) by actively monitoring and managing the battery energy storage system. It can quickly respond to changes in grid frequency by charging or discharging the batteries to help maintain stability. This dynamic response helps the grid stay balanced and supports overall grid reliability.
Dynamic and adaptable
Valen’s Energy Management System (EMS) for its Battery Energy Storage System is very flexible and can easily adapt to changes. You can add new drivers or protocols if needed, and they can be quickly uploaded to the EMS, making it ready to go. The system has 34 input and output points, both digital and analogue, which allows it to handle a variety of tasks. Plus, it uses very little power, making it efficient to run.
Cyber-security
Cyber security is and should be at the forefront of community battery deployment. Valen’s Energy Management System (EMS) comes with agnostic integration to all components through a control and monitoring network. This enables a single login and control from one platform and can be tailored to requirements.
Electrical Capabilities
- Valen Power ModX range uses highly efficient solar panels and is configured to harness the maximum Power in lowlight periods.
- The ModX unique Panel-tilt system allows techs to easily adjust angle to suit site requirement on install or should they change.

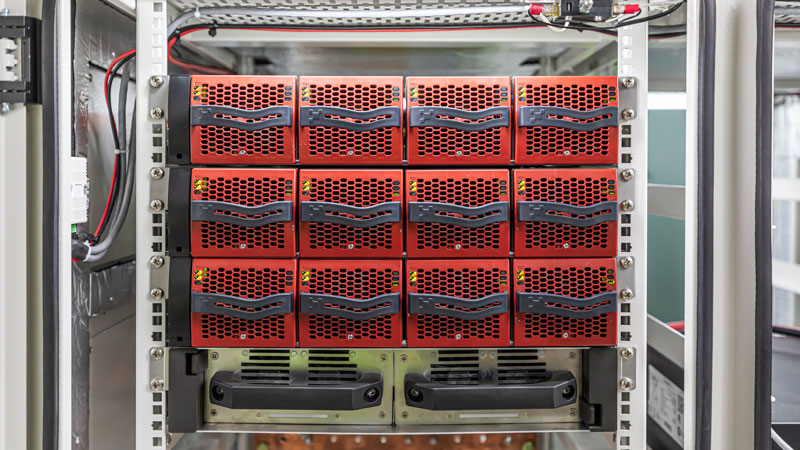

- ModX comes standard with the managed Weco Italian designed rack-mount units due to their ability to provide 7000 cycles to an 80% DOD and full visibility for Asset managers/ NOC.
- The ModX comes standard as a 48VDC unit to ensure efficiency and minimal losses. DC-DC conversion to 12/24VDC available. (Also 230Vac in Single, Split, and 3 Phase available on request.)
- Real-time data, monitoring, configuration, and control, including batteries are remotely or locally visible. Multiple ModX’s can be live on the one dashboard making asset management easy.
| ModX2 | ModX3 | ModX4 | ModX6 | ModX12 | |
|---|---|---|---|---|---|
| DUTY CYCLE 100% | |||||
| 2 DAYS | 88W | 177W | 177W | 265W | 530W |
| 3 DAYS | 59W | 118W | 118W | 177W | 353W |
| 5 DAYS | 35W | 71W | 71W | 106W | 212W |
| 7 DAYS | 25W | 50W | 50W | 76W | 151W |
| DUTY CYCLE 75% | |||||
| 2 DAYS | 88W | 177W | 177W | 265W | 530W |
| 3 DAYS | 59W | 118W | 118W | 177W | 353W |
| 5 DAYS | 35W | 71W | 71W | 106W | 212W |
| 7 DAYS | 25W | 50W | 50W | 76W | 151W |
| DUTY CYCLE 50% | |||||
| 2 DAYS | 88W | 177W | 177W | 265W | 530W |
| 3 DAYS | 59W | 118W | 118W | 177W | 353W |
| 5 DAYS | 35W | 71W | 71W | 106W | 212W |
| 7 DAYS | 25W | 50W | 50W | 76W | 151W |
| DUTY CYCLE 25% | |||||
| 2 DAYS | 88W | 177W | 177W | 265W | 530W |
| 3 DAYS | 59W | 118W | 118W | 177W | 353W |
| 5 DAYS | 35W | 71W | 71W | 106W | 212W |
| 7 DAYS | 25W | 50W | 50W | 76W | 151W |
